    Flat 50mm Conductive Foam Gasket , 50mm Conductive Shielding Gasket

    Ask Lasest Price
    Brand Name : PAN
    Model Number : CUSTOMIZED
    Certification : SGS,ROHS
    Price : 0.1~0.5/pcs
    Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability : 20000000/week
    Delivery Time : 7~14 workdays
    • Product Details
    • Company Profile

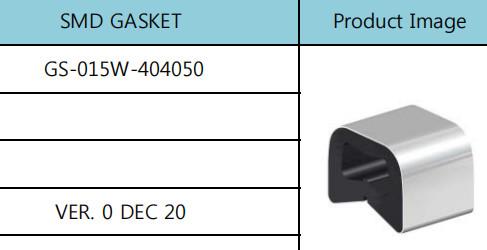

    Flat 50mm Conductive Foam Gasket , 50mm Conductive Shielding Gasket

    1. Part Name: SMD GASKET


    2. WHL: 404050


    3. Product Characteristic


    SMD GASKET is a surface mount technology utilizes surface mounter ( SMD M/C) PCB mounting and is available as a ground terminal and the mount an electric/electronic devices,and EMI noise reduction products. SMD GASKET is suitable for the required flexibility, elastic recovery, heat resistance and electrical conductivity tanwol products.

    4. Material and Finish


    NOITEMMaterialPlating
    1SiliconeSilicone
    2PI FilmSn plating

    PRESS

    NO BURR
    PLATINGNO Discoloration
    Contact Resistance50mΩ (Max.)
    After the test100mΩ (Max.)

    Drawing



    Packing Spec
    (1) Moisture Sensitivity Level : MSL-1
    (2) Carrier Tape Compression Method : Heat Compression Method
    (3) Desiccant Spec : Silica Gel
    (4) Static Electricity Production Max. 100V
    (5) Reel materials will have to apply a plastic type quality of material
    Packing List


    Test Requirements



    Ultra-small size

    · Hollow type can be manufactured up to a thickness of 0.7mm.

    · Solid type can be manufactured up to 0.5mm thick and 1.0mm wide.


    Conductive metal layer on the silicone rubber surface

    · Innovative product with soft silicone rubber properties and conductive metal properties at the same time.

    · Improved EMI shielding and grounding performance due to thicker conductive surface layer.

    · Improved corrosion resistance and reliability by not exposing the copper layer to outside air.


    Easy to adjust product softness

    · Adjusting the hollow size and shape to soften the gasket minimizes stress on and improves adhesion to PCB.

    · Metal surface layer is possible even when the silicone rubber core is thin, improving the disadvantage of its hardness when the silicone rubber is thick.

    · Easy to adjust the shape, number, and thickness of the core hollow.
